Aluminum constructions for your safety
Aluminium zelfdragende evacuatie trap.

Exterior and interior aluminum stairs

Stairs are the preferred solution for collective evacuation or access. All our staircases are produced from lightweight aluminum. Different layouts and types are available.

All JOMY aluminum staircases are produced from anodized aluminum profiles. They come in different layouts (Inline, crossed, rectangular, etc) and structures (suspended or self-supported).

Various types:

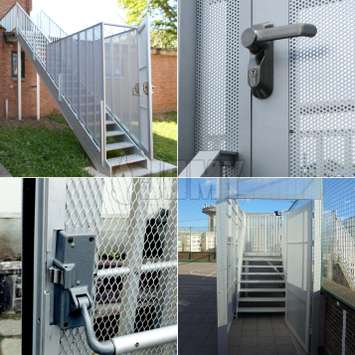

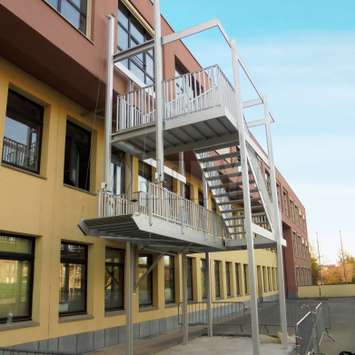

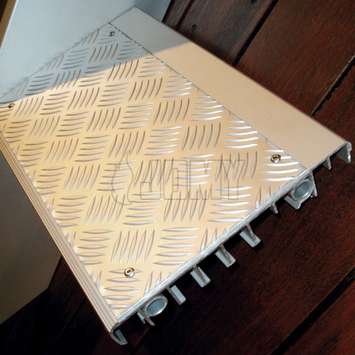

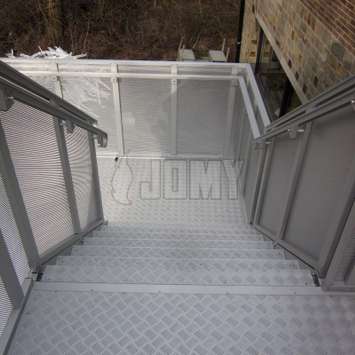

Multiple stair accessories are available to make your stairs even more safe and burglar resistant.

Because of the use of non - rusting materials they are the ideal solution for outside stairs.

Exterior stairs

Depending on the sizes, exterior stairs can handle a large flow of people during a evacuation.

In most evacuation situations there is a panic factor so the egress stairs need to be as safe and comfortable as possible to use.

This can only be achieved with straight stair - flights and not with circular ones.

JOMY evacuation stairs are build from anodized aluminum so they resist harsh conditions without rusting.

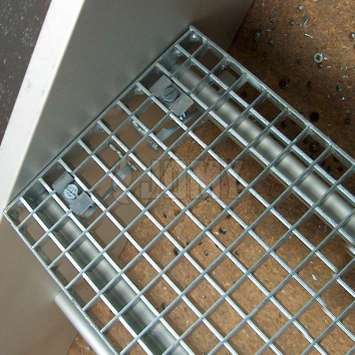

JOMY fire stairs can come with grading floors so the snow will not rest on horizontal plates.

Interior stairs for fire escape and access to different levels

The evacuation stairs foreseen inside new buildings are mostly made from concrete and are as such an integral part of the building structure.

But in old buildings that are being renovated there is often a need to add an inside fire escape stair and it is very difficult to make that out of concrete.

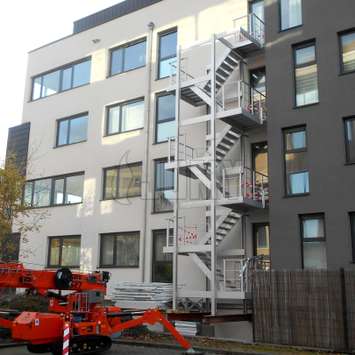

JOMY has the perfect solution with lightweight and very strong aluminum stairs that are mounted on site, without welding.

Because of the weight no cranes or special handling equipment is needed.

The JOMY interior stairs are also used just for their cool and industrial look.

Layout configurations

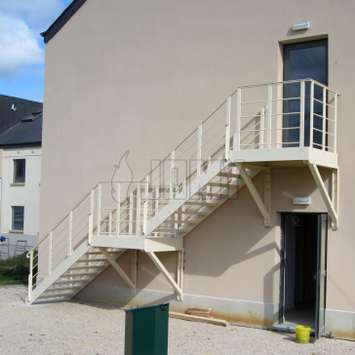

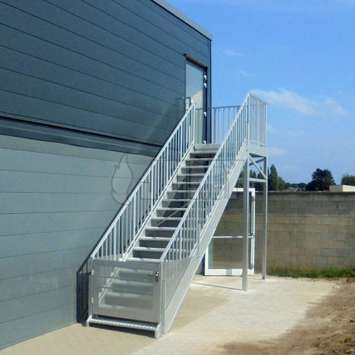

In - line stairs

These JOMY escape stairs have all flights in one line.

This is the simplest form of fire escape stairs.

These stairs can be installed hanging from the wall or independent of the wall.

These stairs take a lot of groundspace and / or wall space.

For this reason they are only used for lower heights, from 12 to 18 feet max.

Every x number of steps there is a resting platform needed. The number is depending on the local legislations and habits.

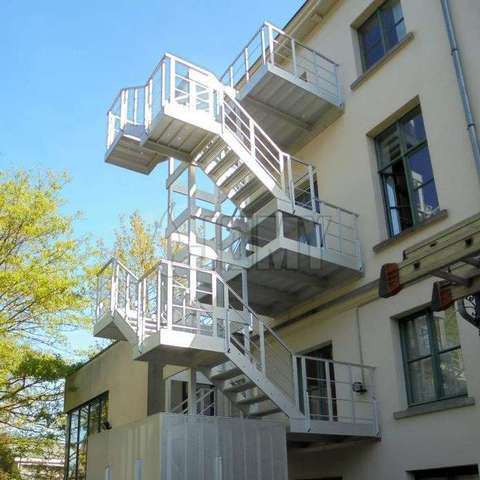

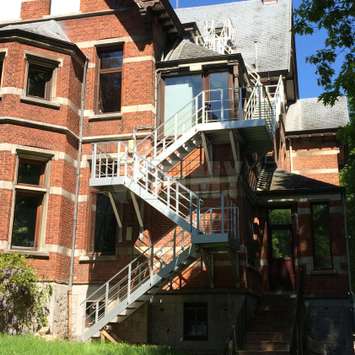

Crossed Stairs

Crossed stair flights can be installed perpendicular or parallel to the wall.

Crossed stairs are offered in two positions.

In the parallel layout, all flights are parallel to the wall.

The staircase is composed of two crossed flights per story, one access landing per exit and one intermediate landing in between two stories. The stairs are always located at least 1m from all openings.

In the perpendicular layout, flights are perpendicular to the wall.

The staircase is composed of two crossed flights per story, one access landing per exit, and one intermediate landing in between two stories. The intermediate landings can be braced to the wall to improve stability.

There are two types of landing available: rectangular and polygonal.

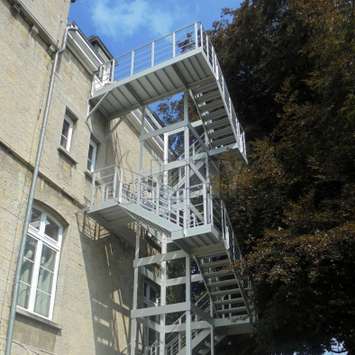

Rectangular stairs

The stair flights are mounted in an rectangular floor - plan.

Rectangular stairs are laid out in a square so that they are alternatively parallel and perpendicular to the wall.

In between two flights, a landing is placed at each corner of the square.

Each story has one access landing, three intermediate landings, and four flights.

These evacuation stairs are installed with their own base structure which is also made from high-end aluminum.

For high stairs, anchors to the wall are provided for more sideways stability.

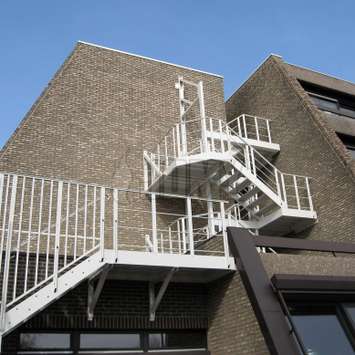

Other stair layouts

Other staircase layouts are available on request: either the typical "American-style" configuration or a combination of all possible configurations.

Most of the American exterior fire escapes are made from steel and or old so they are in bad shape because of lack of maintenance and rust.

A lot of times accidents happen when using fire escapes. To replace these JOMY has the perfect solution: a fire escape made to measure and constructed using anodized aluminum that will not rust.

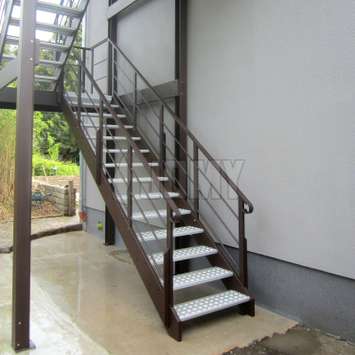

Escalier d'evacuation avec garde-corps type barres paralleles
Evacation via a rooftop and a JOMY stair.
Selfsupporting aluminum evacuation stairs
Stairs
Crossed stairs with hexagonal resting
Anodized in line aluminum stairs with walkway over rooptop
JOMY counterbalanced stairs in painted aluminum
interior retractable stairs
Aluminum crossed evacuation stairs
Crossed aluminum stairs with roof entrance
Crossed aluminum stairs with roof entrance
Een JOMY evacuatietrap in kleur met kooi aan de ingang als ingangsbeveiliging.
Aluminium evacuatietrap voor een school
Evacuatie trap voor een opvangcentrum
7 verdiepingen hoge evacuatie trap zelfdragend.
Aluminium zelfdragende evacuatie trap.
Inline outside Jomy stairs

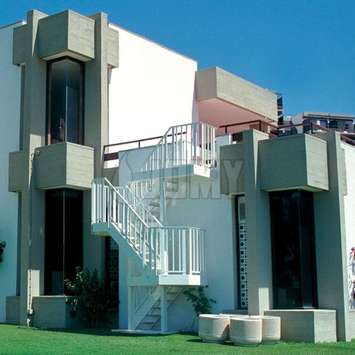

Architectural
An outside aluminum staircase with clean nice architectural effect
An outside aluminum staircase with clean nice architectural effect
JOMY stairs perfectly adapted to the environment
JOMY stairs perfectly adapted to the environment

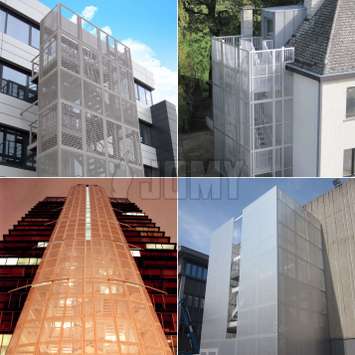

Panelling voor een evacuatietrap in aluminium met esthetisch effect.
Panelling voor een evacuatietrap in aluminium met esthetisch effect.
Aluminium house stairs in line with the balcony
Interior aluminum stairs
Interior stairs with grading
IN - line stairs with a resting platform
Painted in line stairs on a height
JOMY IN LINE stairs on a playground
Een geanodiseerd aluminium trap van JOMY voor binnen en buiten, met relingen en andere opties.
JOMY | Custom aluminum constructions for your safety
Different configurations for JOMY fire escape stairs are available.
Different configurations for JOMY fire escape stairs are available.
Different configurations for JOMY fire escape stairs are available.
Different configurations for JOMY fire escape stairs are available.
JOMY CROSSED stairs paralel to the wall
Painted JOMY CROSSED STAIRS in aluminum
Crossed aluminum stairs
Primary solution for fire evacuation
Stairs
_0_186_
Crossed Stairs
JOMY aluminum fire escape stairs as the preferred solution
JOMY aluminum fire escape stairs as the preferred solution
JOMY aluminum fire escape stairs as the preferred solution
Unknown description
Rectangular stairs
JOMY RECTANGULAR stairs with extended balconies
Antwerp installation of a JOMY stairs with special lay - out
Special JOMY aluminum stairs
