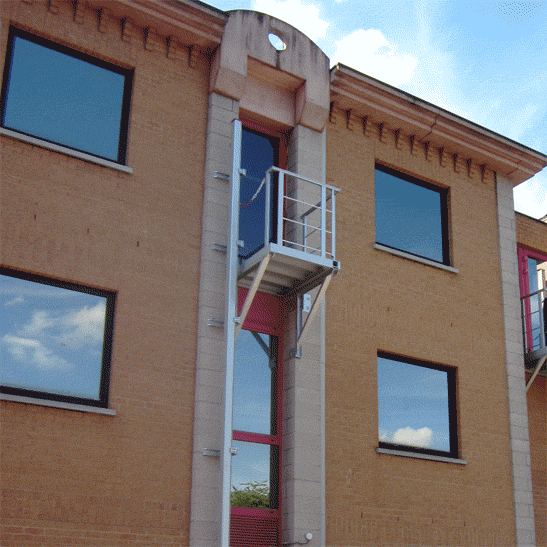

Mini-JOMY retractable foldout ladder animation.

Mini-JOMY Ladder

  • check Mainly for access purposes.
  • check Opens in seconds.
  • check Discreet solution.
  • check Burglar resistant.

The simplified variant of our retractable ladders.

The compact retractable ladder

Engineered to our highest standards by our own design bureau first in the 70s, the lightweight 100% anodized aluminium Mini-JOMY Ladder can widthstand a total charge of up to 2,500 Kg (35 average weight adults)! Compact but robust!

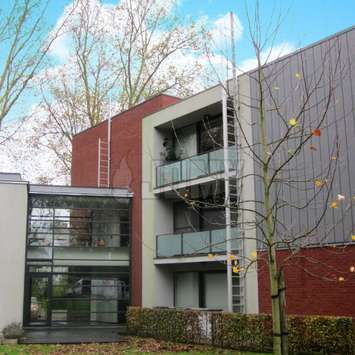

It may lack the reassuring guardrail, height possibilities and multiple independent opening handles of its big brother the JOMY Ladder, but it is still well suited for fire evacuation of small homes and offices consisting of no more than 2 storeys.

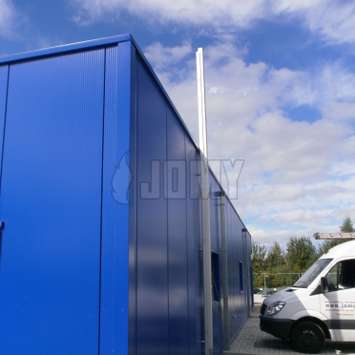

Its solid construction, simplicity and weatherproof box-section design make it very popular for accessing heights in industrial environments where space-saving is often mandatory.

The Mini-JOMY Ladder can be protected against unauthorized use simply by placing a lock on the bottom opening latch.

about_img_description0_5713

Main features

Recommended use Mostly access.
Evacuation from 2 storey building (one opening latch).
Maximum height Up to 15 m or 50 ft.
Opening mechanism 1 or maximum 2 simple opening latches.
Permitted charges Rungs: 770 lb or 350 Kg.
Ladder total: 5500 lb or 2,500 Kg.
Attachments Standard, one attachment every 3’3” ft or 1 m.
Guardrail No guardrail.
Fixed lifeline for fall protection Optional.

about_guard_img_description_5715

Based on popular needs and to help you choose the one that fits you the most, we have gathered hereunder the most common configurations of the Mini-JOMY Ladder .

Please use the following product references to best communicate the type of ladder you need and thus make the order process as efficent as it can be:

1. Common heights

Height variants of the Mini-JOMY Retractable Ladder for 1 and 2 storeys.
Reference MJ03 MJ13 For 3 storeys,
please choose the
JOMY Ladder
Closed height (mm) 5180 8180
Open height (mm) 4670 7670
Highest rung (mm) 4520 7520
  • info Please note that these measurements can be made specific to your own requirements by our engineering department.

2. Distance from the wall

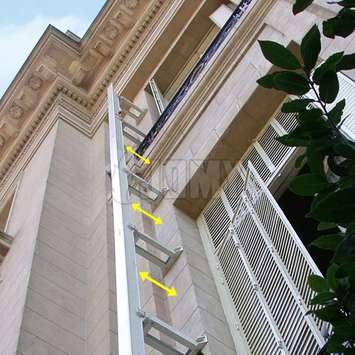

Mini-JOMY Ladder installed at a distance from the façade thanks to special mounting brackets.

Our different mounting brackets allow for the ladder to be securely installed even if facade decorations, exterior window sills or technical wires and tubes are in the way.


Reference JMB00 JMB25 JMB50 JMB80 JMB100
Distance (mm) 0 25 50 80 100
Reference Distance (mm)
JMB00 0
JMB25 25
JMB50 50
JMB80 80
JMB100 100

3. Options

RAL color (polyester powder coating)

RAL color (polyester powder coating)

Access balcony

Access balcony

Reinforcement profile

Reinforcement profile

Protection against over-opening in the absence of a solid floor

Protection against over-opening in the absence of a solid floor

Opening detector

Opening detector

Lifeline rail mounted on a JOMY retractable ladder.

Lifeline rail



local_shipping

Direct shipping of kit from our factory in Wihogne (BE).

format_list_numbered

All necessary mounting parts are carefully packaged and listed.

assignment

Complete with clear instructions for an easy installation.
