Aluminium constructions for your safety
Mobile truck access system for working safely on top of any truck load or tank trailer. Mobile and height adjustable.

Tanker ladder

  • check Height adjustable access platform with security cage.
  • check Mobile lightweight system.
  • check Operable by 1 person.

Effective fall-protection system for working on truck loads

Falls from the top of tanker trucks or any other type of trailer are still very common today and also the cause of serious injuries and even deaths.
Wether for controlling cargo or taking samples via manholes, access to the top of tanks needs to be done under safe conditions. It is for this very reason that we have developped our own mobile tanker ladder.

Easy to use

Tanker ladder - Placement

1. Place

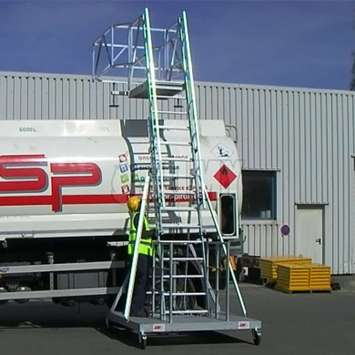

Tanker truck trailer ladder - Adjustement

2. Adjust


Mobile tanker access ladder - Use by a JOMY worker

3. Climb


Always up to the task

Variable height from 2.7 m (8.86 ft) to 4.1 m (13.45 ft). Easily adjustable by manual winch.

Winch used to adjust the height of the JOMY Tanker Ladder.

Safety lock

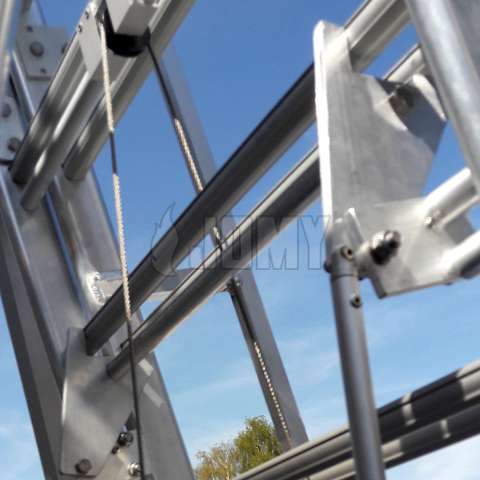

Mechanical locking mecanism of the rungs for improved safety when the ladder is in use.

Locking mecanism used to secure the height of the access platform for truck trailers.

Guaranteed stability

The bottom chassis is loaded with with heavy concrete blocks. The mounted heavy-duty wheels are lockable.

Placement of the concrete ballast on the chassis and used to stabilise the mobile tanker ladder.

Long lifespan

Like all JOMY constructions, this ladder is made out of high quality aluminium profiles. It and can be stored and used in all weather conditions.
Please pay attention that ladders, whatever the type, should never be used with windspeeds above 50 km/h (31 mph or 27 knots).

Protection cage of the aluminium tanker trailer access ladder.


Standard configuration

Protection cage 1300 x 1300 mm (4.26 x 4.26 ft)
Access height 2700 to 4100 mm (8.86 to 13.45 ft)
Platform size 960 x 600 mm (3.15 x 1.97 ft)
Base guardrail height 1100 mm (3.6 ft)
Base chassis 1800 x 1800 mm (5.9 x 5.9 ft)
Ground clearance 240 mm (0.79 ft)
  • info Please note that these measurements can be made specific to your own requirements by our engineering department.
JOMY tanker ladder standard dimensions.

CAD plan

[PDF.png]Tanker ladder

Technical documentation

[PDF.png]User manual

Brochure

[PDF.png]Tanker truck ladder



local_shipping

The JOMY tanker ladder will be delivered at your place ready to use.

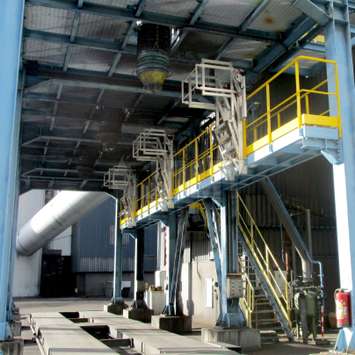

Platform accessed by stairs and equipped with cage ladders for accessing tanker truck manholes.
Fall protection system composed of a rail and a carriage for using a lifeline when working on top of a tanker trailer.
Workplatform for tanker trucks with a levee-bridge system.
